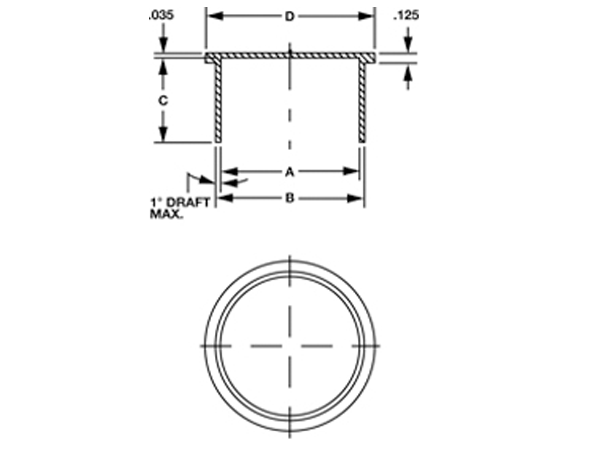

Diagrama
Tapas y tapones para conectores contra descarga electrostática diagram

MSC Serie

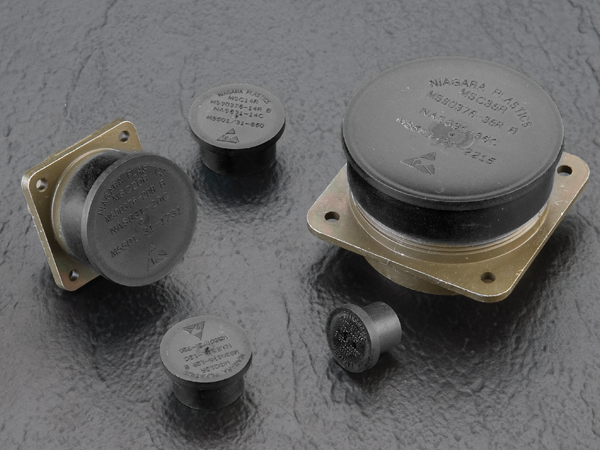

Tapas y tapones para conectores contra descarga electrostática
Tapas y tapones para conectores contra descarga electrostáticaTapas y tapones para conectores contra descarga electrostáticaTapas y tapones para conectores contra descarga electrostática diagram

Las tapas y los tapones de la Serie MSC están fabricados con un compuesto ICP (polímero inherentemente conductor). Este material antiinundación no "marca" ni "daña" cuando se frota rápidamente contra una superficie rígida, plana y laminada. Estas tapas y tapones antiinundación, utilizados habitualmente en aplicaciones militares y aeroespaciales, cumplen con los requisitos de M 5501/31.

Este producto ha sido fabricado con un material conductor que:

  1. Resistividad a la superficie inferior a 1 x 105 ohmios/cuadrado de acuerdo con el método de prueba ASTM D-257-78
  2. Cumple con los requisitos de desintegración estática de MIL-PRF-81705E, Tipo II y el Estándar del Método Federal de Prueba N.° 101, Método 4046
Tenga en cuenta que los números de pieza se han actualizado debido a un cambio interno para reflejar el código correcto del material.

Material: Compuesto IPC
Color estándar: Negro

N.° de artículoEstiloTamaño de la cubiertaMS 5501/31Dim A (pulg.)Dim B (pulg.)Dim C (pulg.)Dim D (pulg.)
MSC-4Q4Tapa42500.2450.3050.500.43

Color:
Black
Embalaje:
CARTON-5000
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MINIPACK-1000
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MICROPACK-100
Cantidad:
Precio:
Ingrese la cantidad
MSC-5Q3Tapa53130.3050.3650.500.50

Color:
Black
Embalaje:
CARTON-5000
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MINIPACK-1000
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MICROPACK-100
Cantidad:
Precio:
Ingrese la cantidad
MSC-6Q4Tapa63750.3680.4380.500.62

Color:
Black
Embalaje:
CARTON-5000
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MINIPACK-1000
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MICROPACK-100
Cantidad:
Precio:
Ingrese la cantidad
MSC-8RQ3Tapa84800.4800.5400.500.74

Color:
Black
Embalaje:
CARTON-9000
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MINIPACK-1800
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MICROPACK-180
Cantidad:
Precio:
Ingrese la cantidad
MSC-9Q3Tapa95000.5420.6020.500.78

Color:
Black
Embalaje:
CARTON-5000
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MINIPACK-1000
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MICROPACK-100
Cantidad:
Precio:
Ingrese la cantidad
MSC-10RQ3Tapa106050.6050.6650.500.84

Color:
Black
Embalaje:
CARTON-6000
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MINIPACK-1200
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MICROPACK-120
Cantidad:
Precio:
Ingrese la cantidad
MSC-12RQ3Tapa127200.7200.7750.500.97

Color:
Black
Embalaje:
CARTON-4500
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MINIPACK-900
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MICROPACK-90
Cantidad:
Precio:
Ingrese la cantidad
MSC-14RQ3Tapa148500.8500.9050.501.12

Color:
Black
Embalaje:
CARTON-3500
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MINIPACK-700
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MICROPACK-70
Cantidad:
Precio:
Ingrese la cantidad
MSC-16RQ3Tapa169730.9731.0350.501.22

Color:
Black
Embalaje:
CARTON-2500
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MINIPACK-500
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MICROPACK-50
Cantidad:
Precio:
Ingrese la cantidad
MSC-18RQ3Tapa1810931.0931.1550.561.33

Color:
Black
Embalaje:
CARTON-2000
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MINIPACK-400
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MICRO-40
Cantidad:
Precio:
Ingrese la cantidad
MSC-19Q3Tapa1911251.1681.2380.561.43

Color:
Black
Embalaje:
CARTON-1500
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MINIPACK-300
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MICROPACK-30
Cantidad:
Precio:
Ingrese la cantidad
MSC-20RQ4Tapa2012311.2311.3010.561.46

Color:
Black
Embalaje:
CARTON-2500
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MINIPACK-500
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MICRO-50
Cantidad:
Precio:
Ingrese la cantidad
MSC-22RQ4Tapa2213401.3401.4100.561.59

Color:
Black
Embalaje:
CARTON-1500
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MINIPACK-300
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MICROPACK-30
Cantidad:
Precio:
Ingrese la cantidad
MSC-23Q3Tapa23-1.4081.4780.561.65

Color:
Black
Embalaje:
CARTON-1000
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MINIPACK-200
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MICROPACK-20
Cantidad:
Precio:
Ingrese la cantidad
MSC-24RQ3Tapa2414631.4631.5330.561.70

Color:
Black
Embalaje:
CARTON-1500
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MINIPACK-300
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MICROPACK-30
Cantidad:
Precio:
Ingrese la cantidad
MSC-25Q3Tapa25-1.5361.6060.561.78

Color:
Black
Embalaje:
CARTON-1500
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MINIPACK-300
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MICROPACK-30
Cantidad:
Precio:
Ingrese la cantidad
MSC-26Q3Tapa26-1.5901.6600.561.81

Color:
Black
Embalaje:
CARTON-1000
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MINIPACK-200
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MICROPACK-20
Cantidad:
Precio:
Ingrese la cantidad
MSC-28R-1Q3Tapa2817151.7151.7900.561.95

Color:
Black
Embalaje:
CARTON-1000
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MINIPACK-200
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MICROPACK-20
Cantidad:
Precio:
Ingrese la cantidad
MSC-32R-1Q3Tapa3219651.9652.0400.562.22

Color:
Black
Embalaje:
CARTON-900
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MINIPACK-180
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MICROPACK-18
Cantidad:
Precio:
Ingrese la cantidad
MSC-36R-1Q3Tapa3622152.1252.2900.602.44

Color:
Black
Embalaje:
CARTON-500
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MINIPACK-100
Cantidad:
Precio:
Ingrese la cantidad
MSC-40R-1Q3Tapa4024402.4402.5300.602.66

Color:
Black
Embalaje:
CARTON-500
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MINIPACK-100
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MICROPACK-10
Cantidad:
Precio:
Ingrese la cantidad
MSC-44R-1Q3Tapa4427202.2702.8120.602.96

Color:
Black
Embalaje:
CARTON-500
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MINIPACK-100
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MICROPACK-10
Cantidad:
Precio:
Ingrese la cantidad
MSC-48R-1Q3Tapa4829602.9603.0500.603.22

Color:
Black
Embalaje:
CARTON-500
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MINIPACK-100
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MICROPACK-10
Cantidad:
Precio:
Ingrese la cantidad
MSC-8YQ3Tapón-4130.4130.4830.620.67

Color:
Black
Embalaje:
CARTON-10000
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MINIPACK-2000
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MICROPACK-200
Cantidad:
Precio:
Ingrese la cantidad
MSC-10YQ3Tapón-5300.5300.5950.620.75

Color:
Black
Embalaje:
CARTON-7000
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MINIPACK-1400
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MICROPACK-140
Cantidad:
Precio:
Ingrese la cantidad
MSC-12YQ3Tapón-6550.6550.7150.620.86

Color:
Black
Embalaje:
CARTON-5000
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MINIPACK-1000
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MICROPACK-100
Cantidad:
Precio:
Ingrese la cantidad
MSC-14YQ3Tapón-7850.7850.8450.621.03

Color:
Black
Embalaje:
CARTON-4500
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MINIPACK-900
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MICROPACK-90
Cantidad:
Precio:
Ingrese la cantidad
MSC-16YQ3Tapón-8930.8930.9630.621.12

Color:
Black
Embalaje:
CARTON-3500
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MINIPACK-700
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MICROPACK-70
Cantidad:
Precio:
Ingrese la cantidad
MSC-18YQ3Tapón-10281.0281.0880.621.25

Color:
Black
Embalaje:
CARTON-3000
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MINIPACK-600
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MICROPACK-60
Cantidad:
Precio:
Ingrese la cantidad
MSC-20YQ3Tapón-11501.1501.2150.621.41

Color:
Black
Embalaje:
CARTON-2500
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MINIPACK-500
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MICROPACK-50
Cantidad:
Precio:
Ingrese la cantidad
MSC-22YQ3Tapón-12701.2701.3400.621.50

Color:
Black
Embalaje:
CARTON-2000
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MINIPACK-400
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MICROPACK-40
Cantidad:
Precio:
Ingrese la cantidad
MSC-24YQ3Tapón-13901.3901.4600.621.64

Color:
Black
Embalaje:
CARTON-1500
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MINIPACK-300
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MICROPACK-30
Cantidad:
Precio:
Ingrese la cantidad
MSC-25YQ3Tapón-15401.5401.5800.621.81

Color:
Black
Embalaje:
CARTON-1250
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MINIPACK-250
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MICROPACK-25
Cantidad:
Precio:
Ingrese la cantidad
MSC-28Y-1Q3Tapón-16451.6481.7180.621.88

Color:
Black
Embalaje:
CARTON-1000
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MINIPACK-200
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MICROPACK-20
Cantidad:
Precio:
Ingrese la cantidad
MSC-32YQ3Tapón-18901.8901.9700.622.12

Color:
Black
Embalaje:
CARTON-900
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MINIPACK-180
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MICROPACK-18
Cantidad:
Precio:
Ingrese la cantidad
MSC-36YQ3Tapón-21402.1402.2100.622.34

Color:
Black
Embalaje:
CARTON-500
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MINIPACK-100
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MICROPACK-10
Cantidad:
Precio:
Ingrese la cantidad
MSC-40Y-1Q3Tapón-23802.3802.4500.622.60

Color:
Black
Embalaje:
CARTON-500
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MINIPACK-100
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MICROPACK-10
Cantidad:
Precio:
Ingrese la cantidad
MSC-44Y-1Q3Tapón-26302.6302.7000.622.88

Color:
Black
Embalaje:
CARTON-500
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MINIPACK-100
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MICROPACK-10
Cantidad:
Precio:
Ingrese la cantidad
MSC-48Y-1Q3Tapón-28802.8802.9500.623.12

Color:
Black
Embalaje:
CARTON-500
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MINIPACK-100
Cantidad:
Precio:
Ingrese la cantidad
Color:
Black
Embalaje:
MICROPACK-10
Cantidad:
Precio:
Ingrese la cantidad
